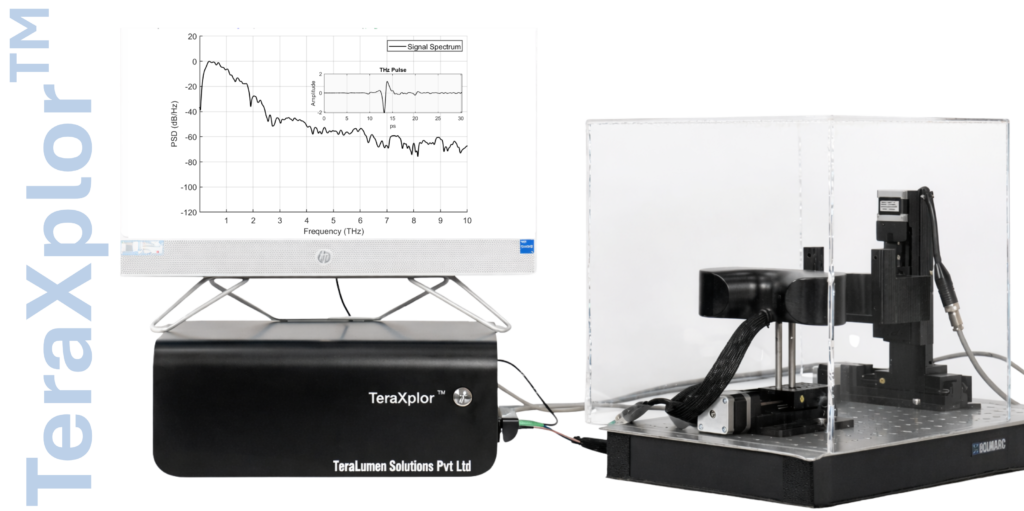

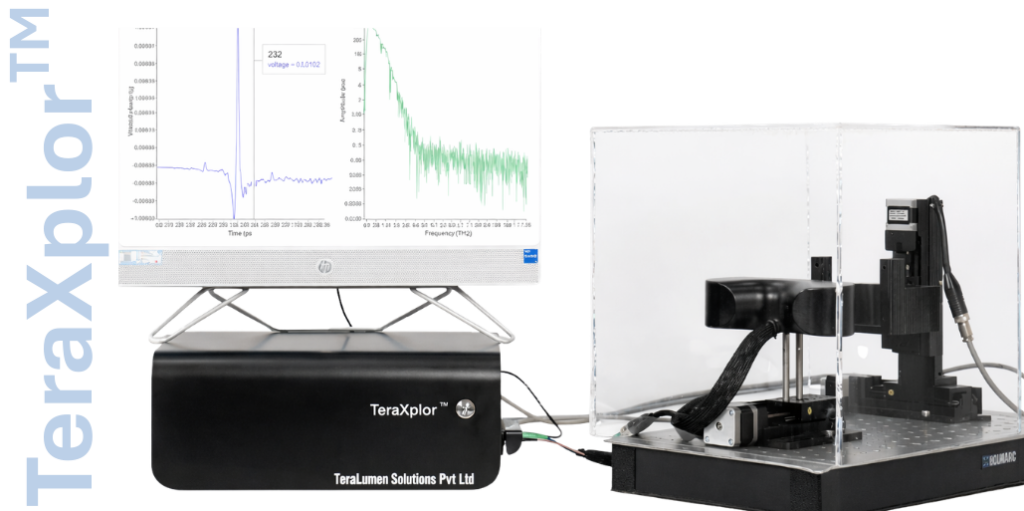

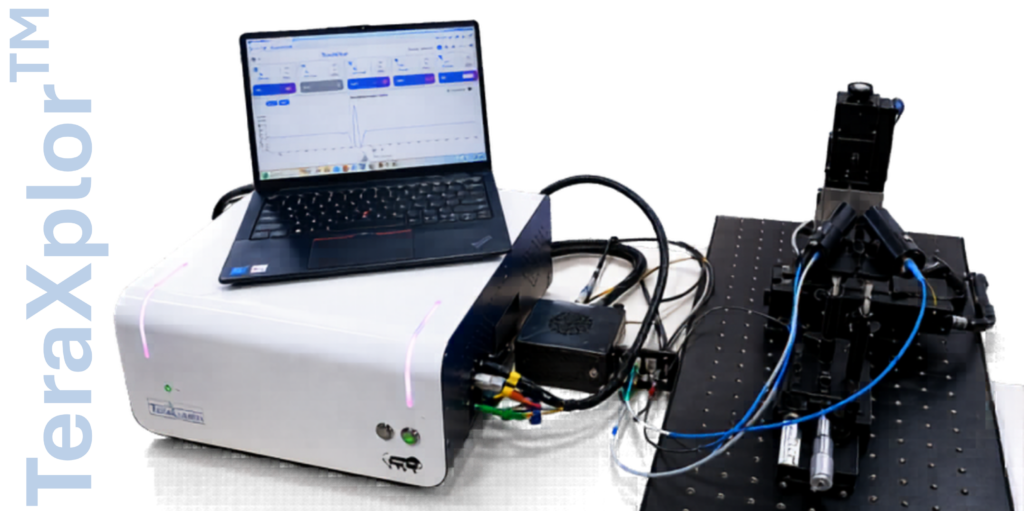

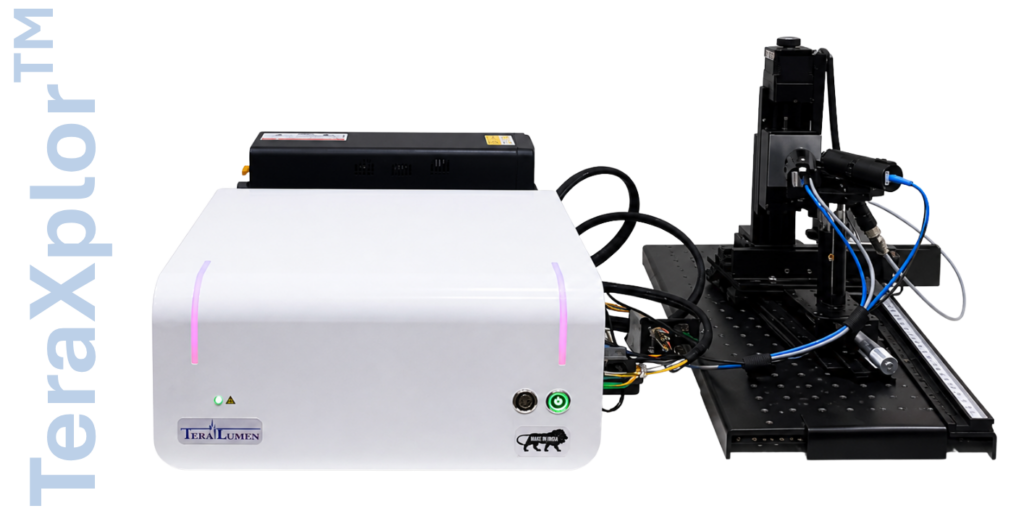

The TeraXplor™

The TeraXplor™ is a powerful research-based terahertz spectroscopy system that’s easy to set up and use. It can be configured to take all sorts of measurements with, including transmission, reflection, and scattering, at any angle configuration. Because it uses a fiber-optic transmitter and detector, you can easily make testing setup in short span of time. All you need to do is connect it to get started – no additional setup is required.

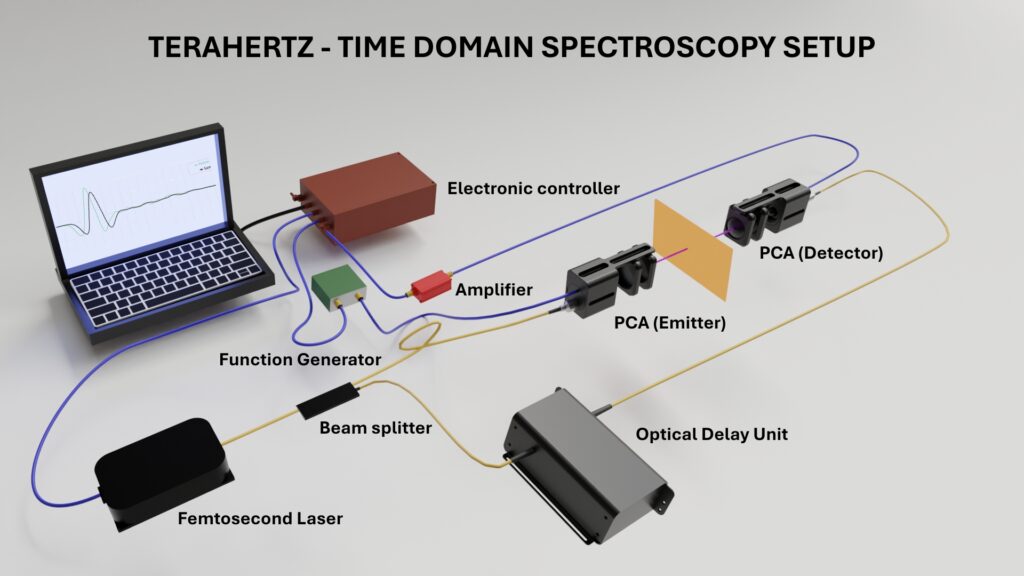

THz-Time-Domain Spectroscopy Applications

  • Liquids and gases analysis
  • Dielectric material characterization

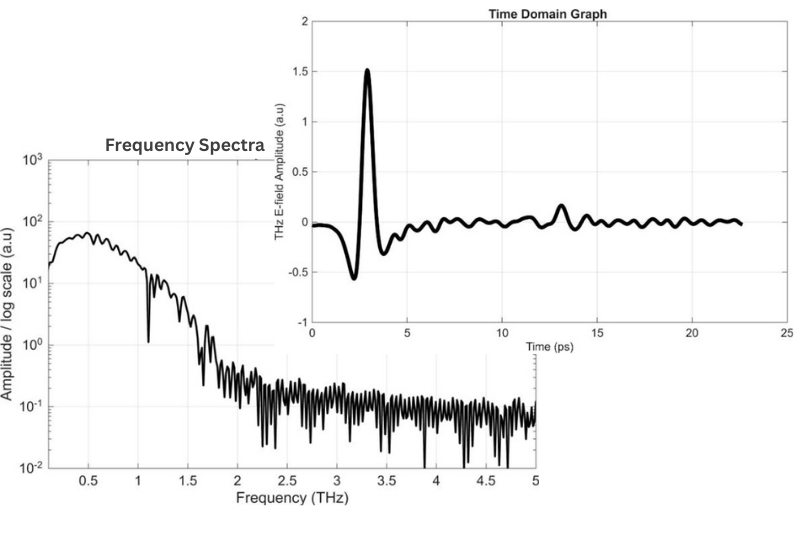

  • Amplitude and phase information
  • Analysing chemicals in powder and tablet form
  • Distinguishing crystalline and amorphous structures
  • Determining polymers dielectric properties
  • Distinguishing various isomers

Key Features

  • Compact Controller
  • Proven – Fibre coupled sensor setup
  • Integrated data processor
  • Standard PC and ethernet
  • AI Embedded image analysis
  • Inbuilt camera for accurate alignment
  • Digital inputs available for measurement control
  • Inbuilt automation interfacing
  • Cloud data storage
  • Automation Integration

Non-destructive testing (NDT) R&D Applications

  • Paint protection coating R&D
  • Pharmaceutical drug analysis like PAT
  • Composites & Textile quality improvement
  • Identifying substances even through plastic pipes and tubes and other packaging
  • Determining the layer thicknesses of multi-layer coatings

THz-TDS SPS Basic Features

Pulse

Data saving in *csv

File management

System controls

System Specifications

Spectral Range 0.1 – 3.5 THz
Working Mode

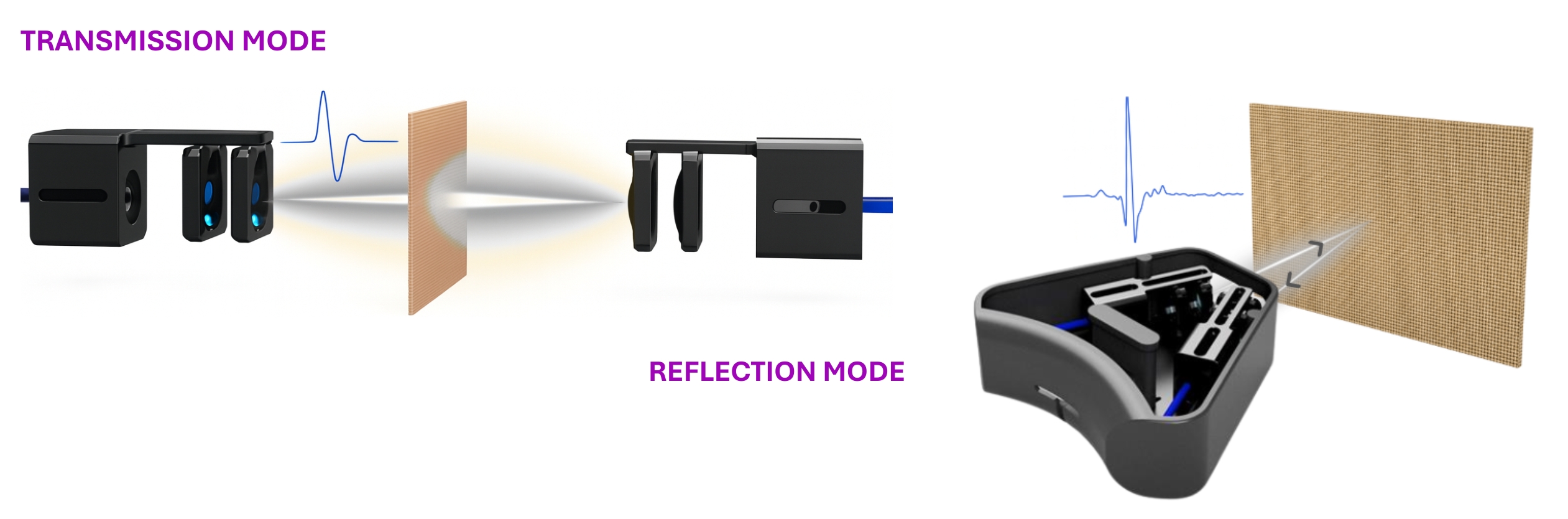

Thru-Transmission and Reflection
Dynamic Range
>60dB
Average Power
100μW
Scan Range
>330ps
Scan Speed
5ps/s
Laser Repetition Frequency
100MHz
Laser Output Ports
1550nm, FC/APC, PM Fibre
THz Frequency Resolution
< 1.2 GHz
Sensor
Lens based Antenna

Dimensions and Weight

Controller (L x W x H) 40 cm x 30 cm x15 mm
Controller Weight
15 Kg
Sensor
< 500 Grams

Environment and Power Requirements

Operating Voltage 230 VAC, 10A
Power Consumption
< 250 W
Ambient Atmosphere
<25 °C, 80% RH
Operating Temperature
15 - 35 °C
Power Consumption
<200W
Cooling Requirements
No water cooling required

THz-TDS SPS Pro & Imaging Specifications

Travel Range 75 mm x 75 mm x 75 mm
Resolution X - Axis
< 250 μm* ( Stage resolution < 10 μm )
Resolution Y - Axis
< 250 μm* ( Stage resolution < 10 μm )
Resolution Z - Axis
Stage resolution < 10 μm
Load Capacity X-Axis
>330ps
Sensor Integration
Camera/Depth Sensor/Laser
Imaging
AI smart machine learning algorithm

Note: Turnkey system is customizable based on application requirements.

Standard Scope of Supply

The TeraXplor™ scope comprises with

Controller

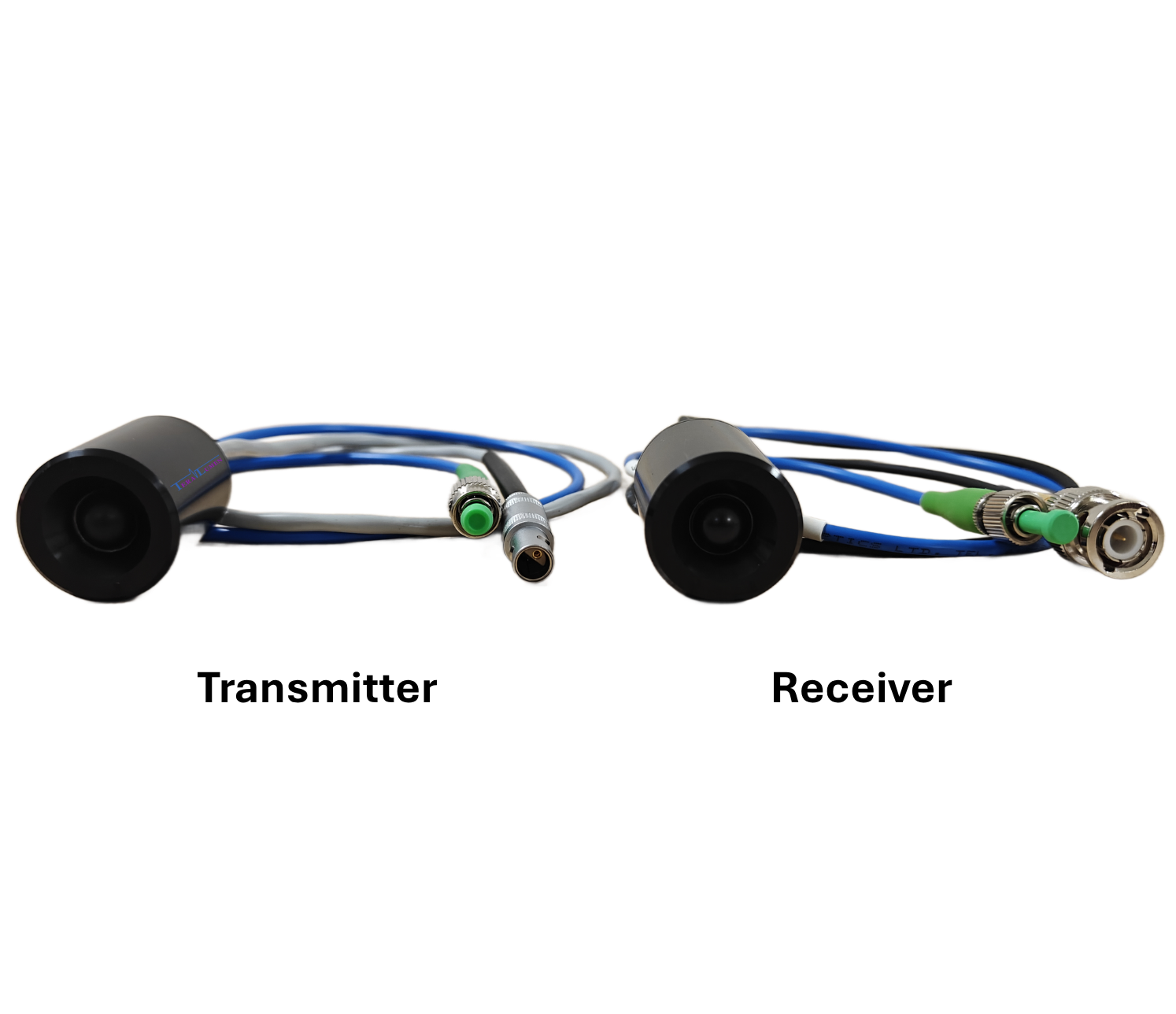

Probe Head

THz-TDS SPS Basic

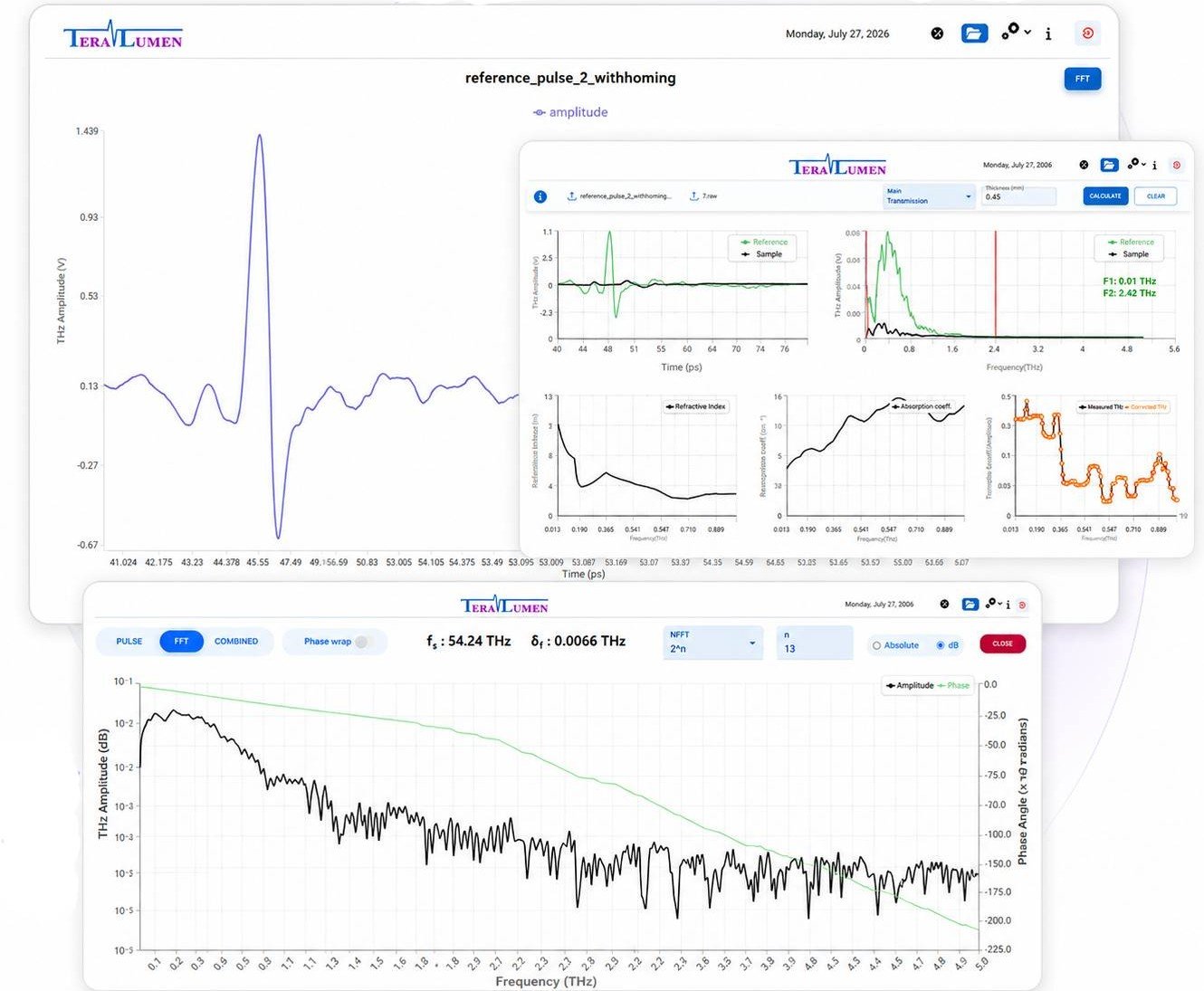

Software

Cable

set

Transmission

Jig

Reflection

Jig

Integrated PC

UPS

Optional

  • THz Purge Chamber

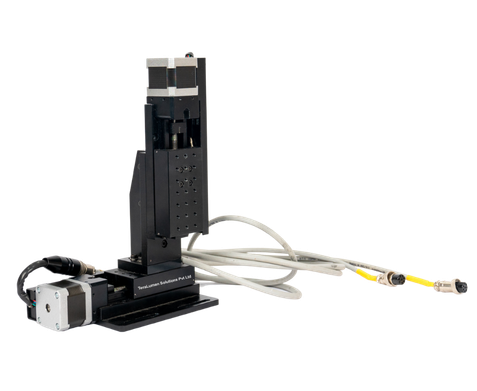

  • X, Y and Z Motorized Axis Scanner(customizable)
  • THz-TDS SPS Pro Software
  • Alignment Camera
  • Cloud data storage

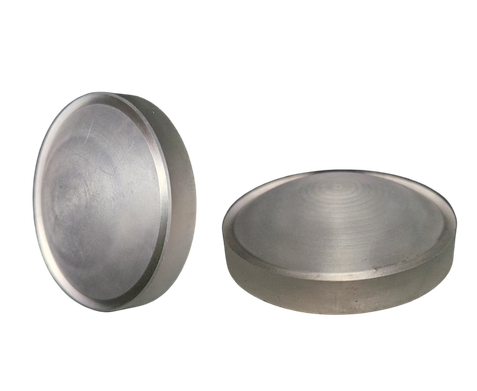

  • TPX Lens
  • Rotational Stage scanner
  • Sample holder
  • Custom mechanical/optical setup
  • Custom THz Fiber length

Note: Turnkey system is customizable based on application requirements.
