Red Rubber
Inspection in Aerospace
Terahertz NDT for Non-Contact Red Rubber Thickness,
Bond Integrity and Internal Defect Inspection.

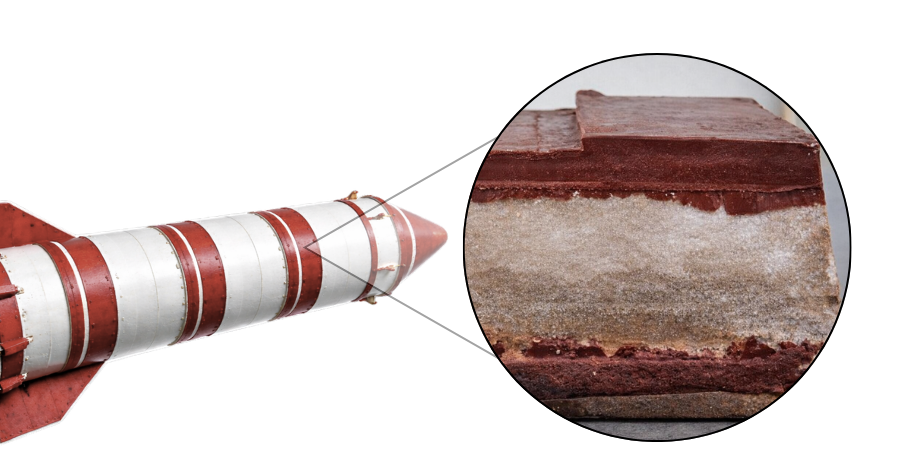

Red rubber is used in aerospace thermal-protection structures where thickness, bond quality and internal integrity are critical. During manufacturing and service, hidden defects such as voids, inclusions, delamination, debonding and thickness variation can develop within the material.
TeraNIM-Aero uses Terahertz Time-Domain Spectroscopy (THz-TDS) to inspect red rubber non-destructively and without physical contact, enabling aerospace teams to evaluate material thickness, bond interfaces and subsurface defects without cutting the component or using liquid couplant.
Why Red Rubber Needs Non-Contact Inspection?
- Material thickness can vary across manufactured components
- Voids and air gaps can develop inside the rubber structure
- Foreign inclusions may become embedded during manufacturing
- Bonded interfaces can develop delamination or debonding
- Single-sided non-contact inspection supports repeatable quality control
Conventional Red Rubber Inspection Challenges
- Hidden internal voids
- Thickness variation
- Foreign inclusions
- Delamination / debonding
- Need for non-contact inspection
How Terahertz Technology Works for Red Rubber Inspection
TeraNIM-Aero directs a THz pulse into the red rubber structure and analyses reflections generated from the material surfaces, internal interfaces and discontinuities. The time separation between reflections carries the optical thickness of the material between them, so a void, inclusion or debonded interface shows up as an extra reflection at a specific depth.
TeraNIM Red Rubber Inspection Workflow

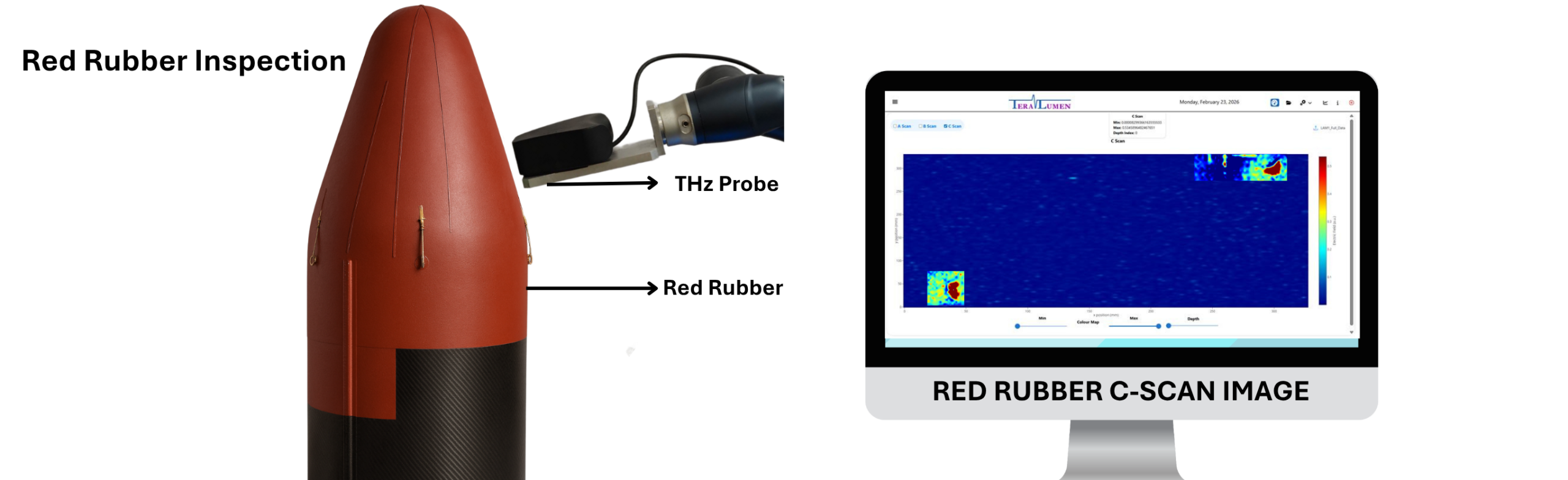

Direct a THz pulse onto the red rubber surface and acquire the reflected signal using single-side, non-contact access.
Capture reflections from the rubber layer, bond interface and internal discontinuities such as voids, delamination or debonding.
Extract the reflected-signal features to determine thickness, interface condition and defect indications, then generate the inspection result.
Key Advantages for Aerospace OEMs & Research Organisations
- Non-Contact Inspection – No physical probe contact with the red rubber surface.
- Non-Destructive Testing – Inspect the material without cutting or sectioning the component.
- Thickness Measurement – THz time-delay information determines calibrated red rubber thickness.
- Internal Defect Detection – Voids, inclusions and other discontinuities alter the reflected THz signal.
- Bond & Defect Mapping – Scanning multiple locations visualizes thickness variation and interface anomalies.
- Automation Ready – Integrates with scanners and automated positioning systems for repeatable inspection.
Red Rubber Quality Control with TeraNIM™
TeraNIM-Aero provides a non-contact and non-destructive approach for inspecting suitable aerospace red rubber structures. By combining THz reflection measurement, calibrated thickness analysis, interface evaluation and automated scanning, the system can support red rubber thickness measurement, void and inclusion detection, delamination and debonding assessment, defect mapping and digital aerospace quality control.
