Non Invasive Measurement
Defect Detection
Higher Depth Penetration
High-Resolution Imaging
Aerospace applications with THz technology
Coating Thickness
Multi-Layer Coating

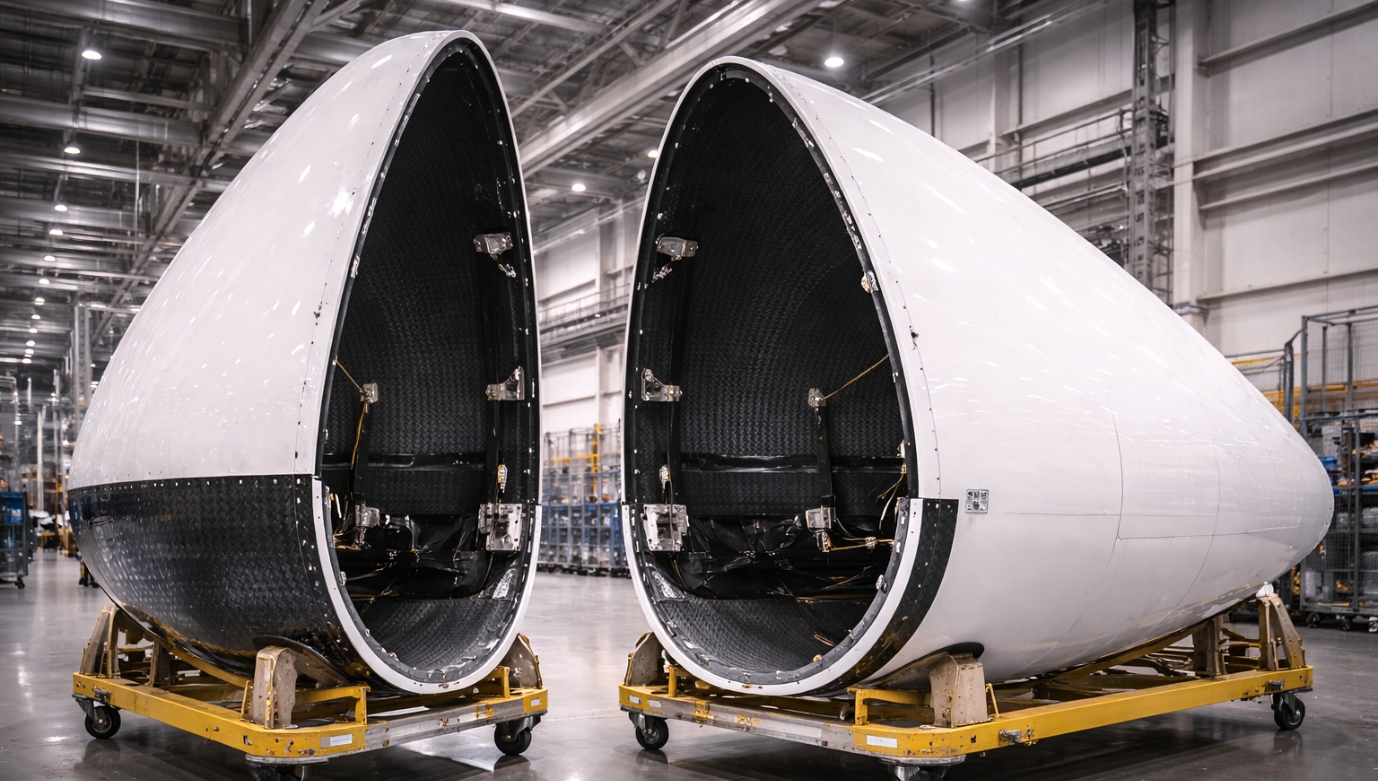

Defect-detection in FRP

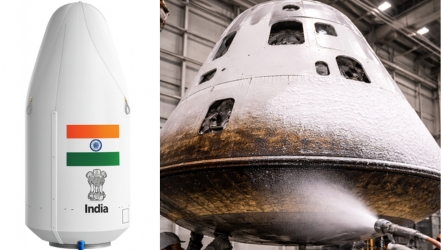

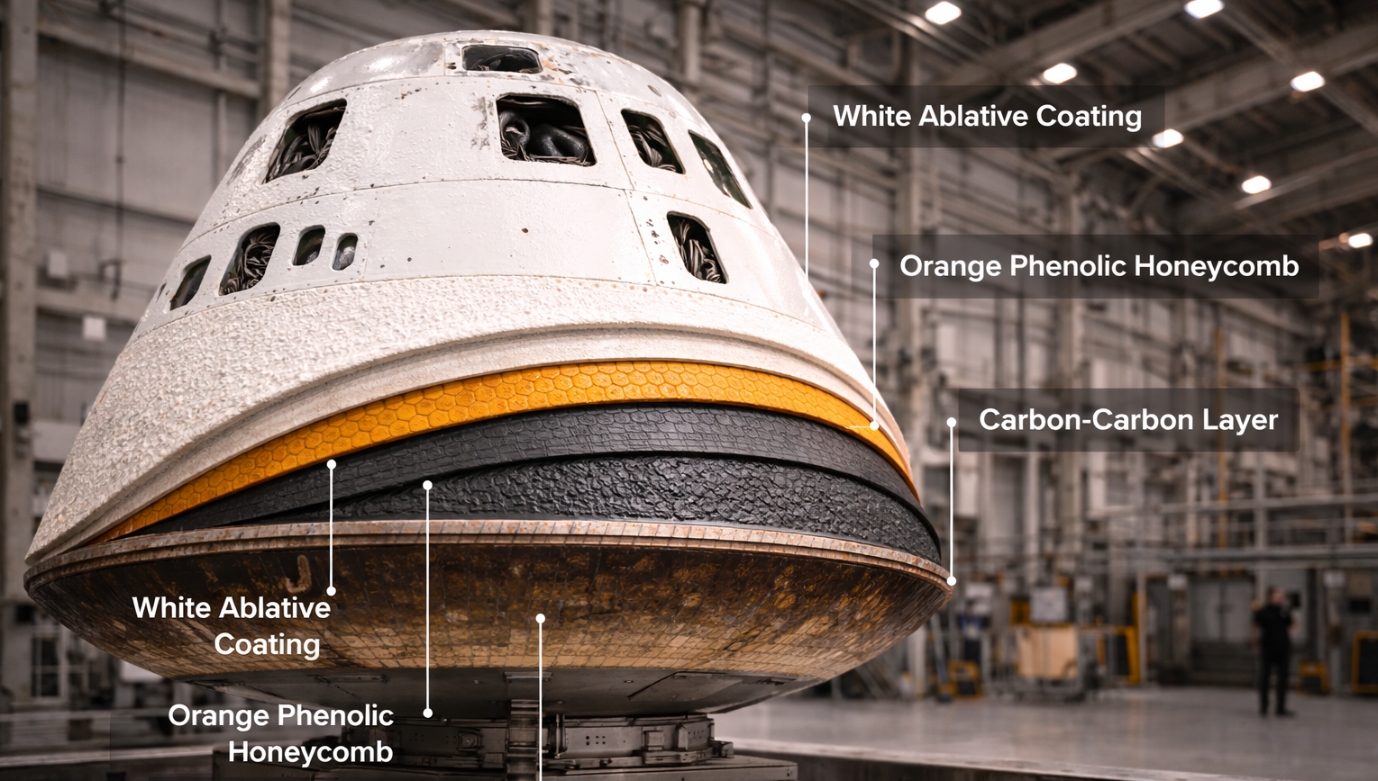

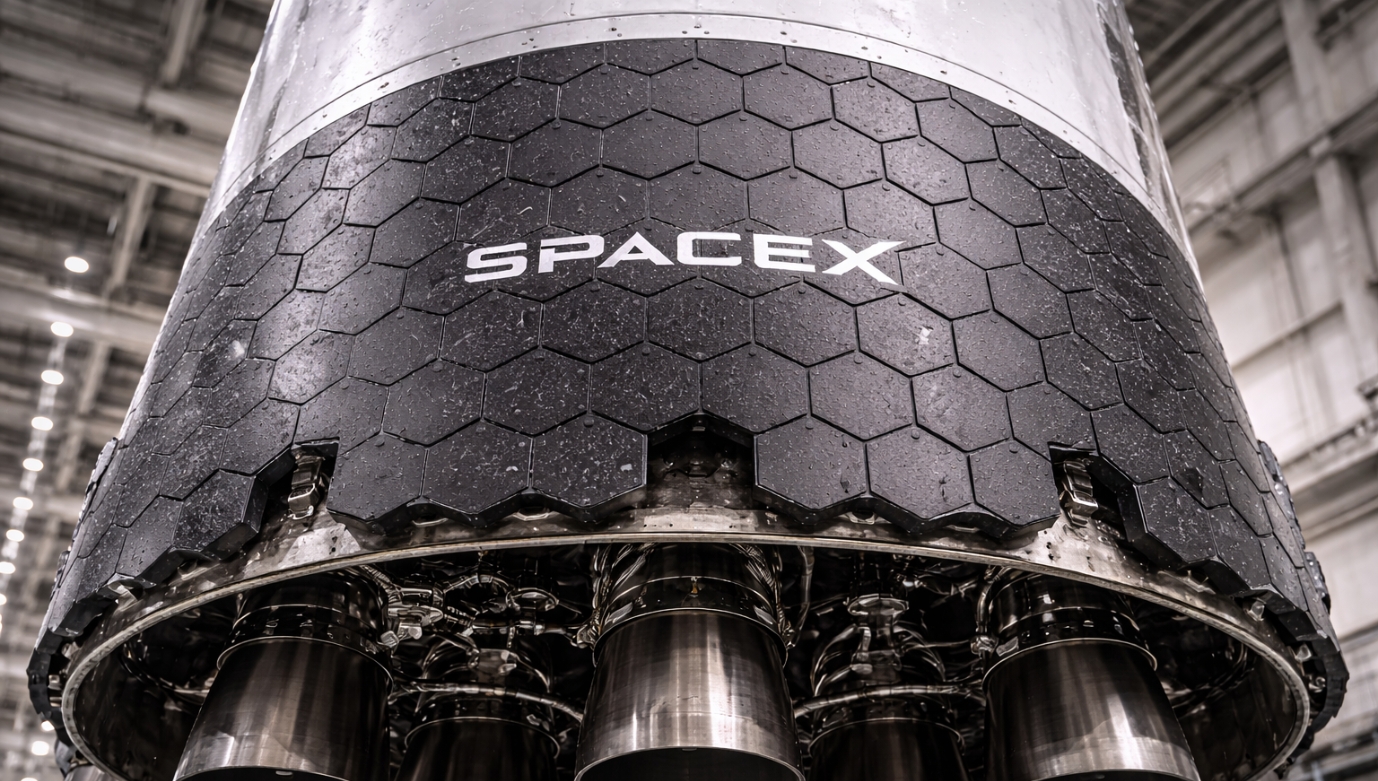

Thickness & Defect-detection in SpaceX Tile

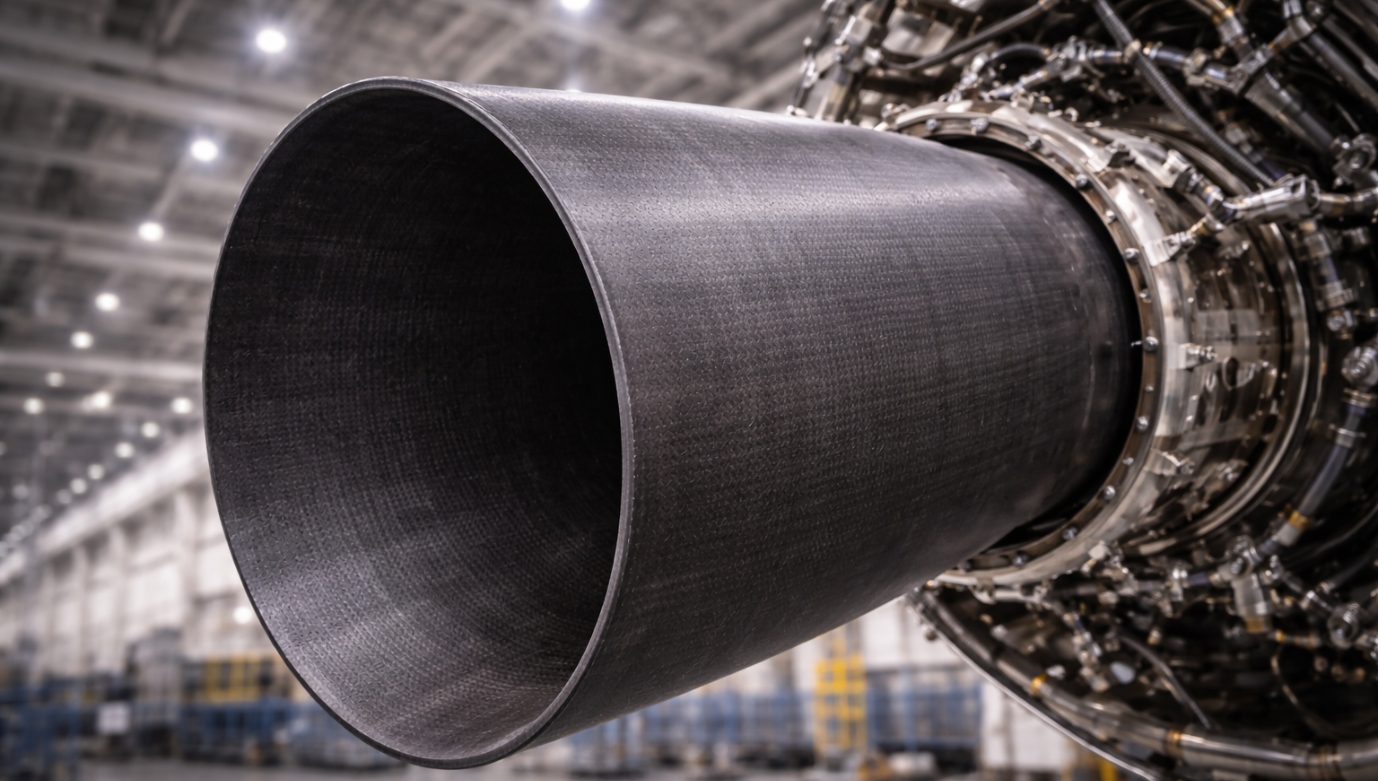

Defect-detection in Rocket
engine nozzle

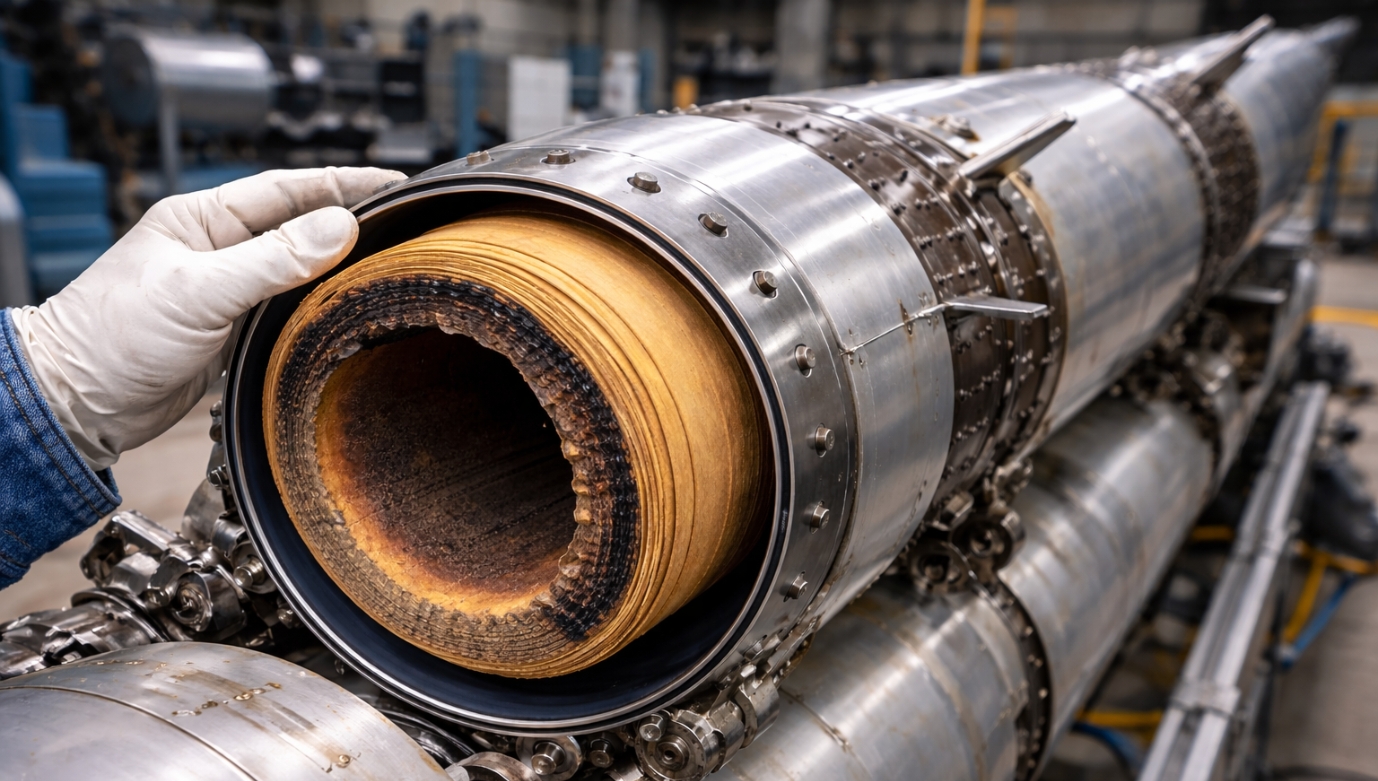

Thickness measurement in
phenolic-paper inside missile system

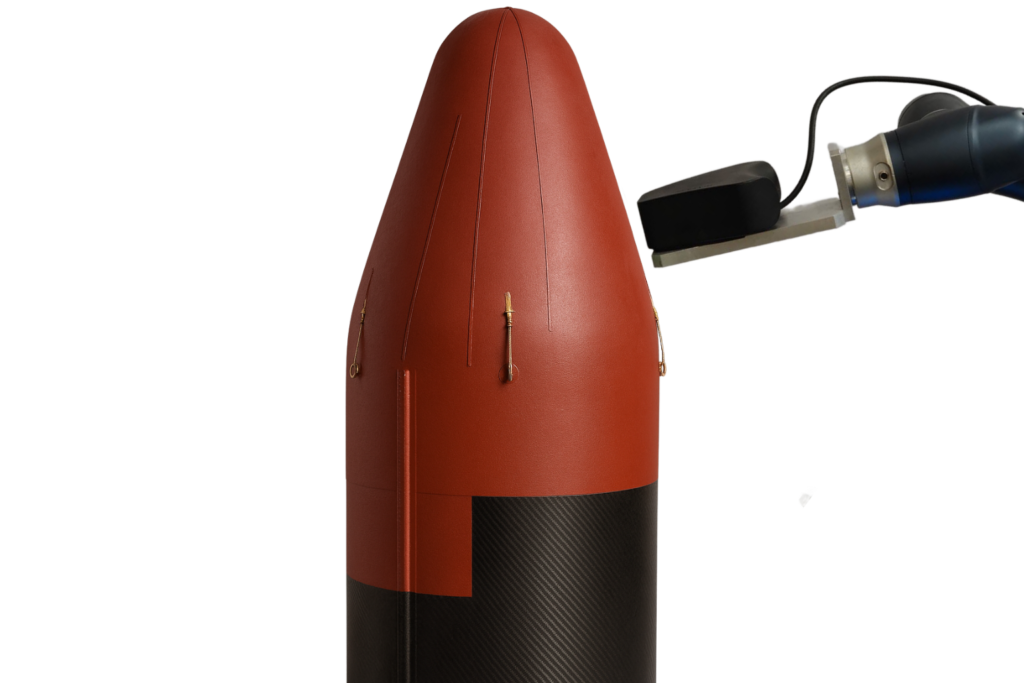

Coating Thickness Inspection
TeraNIM™ – Aerospace enables accurate single-layer thickness measurement.
- Precise Coating Thickness Measurement
- Non-Contact, Non-Destructive Inspection
- Uniform Coating Coverage Verification
- Applicable to Paints, Polymers, and Protective Coatings
Thickness measurement

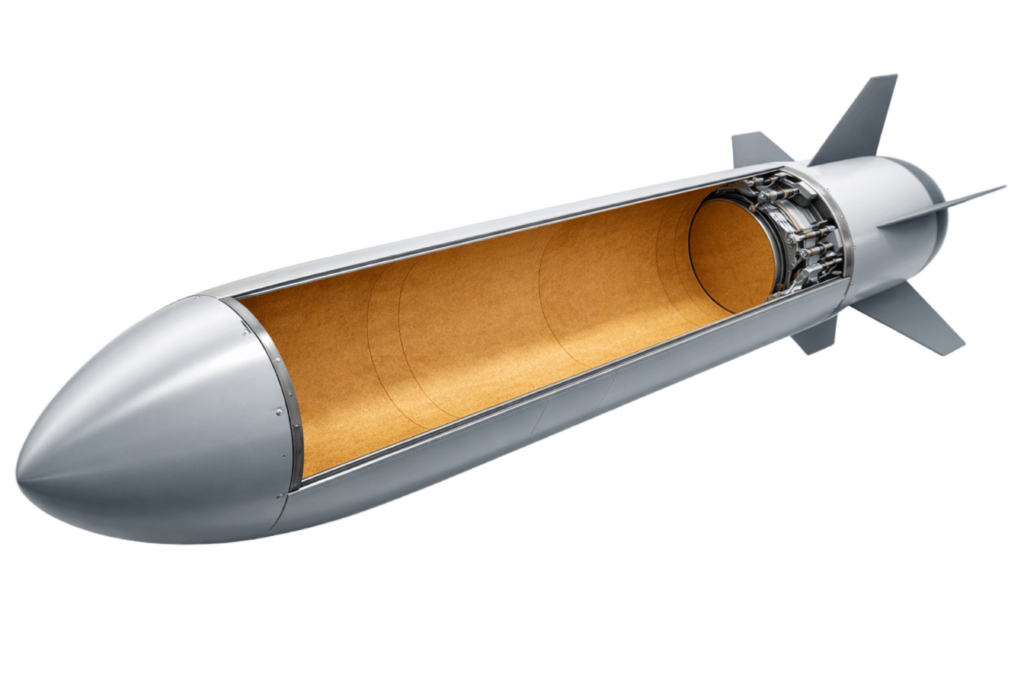

TeraNIM™ – Aerospace measure thickness in phenolic paper ablative and insulation layers inside missile systems.
- Measures phenolic paper / ablative liner thickness
- Verifies uniform bonding to metal or FRP
- Detects over- or under-thickness without cutting
- Bonding & delamination detection

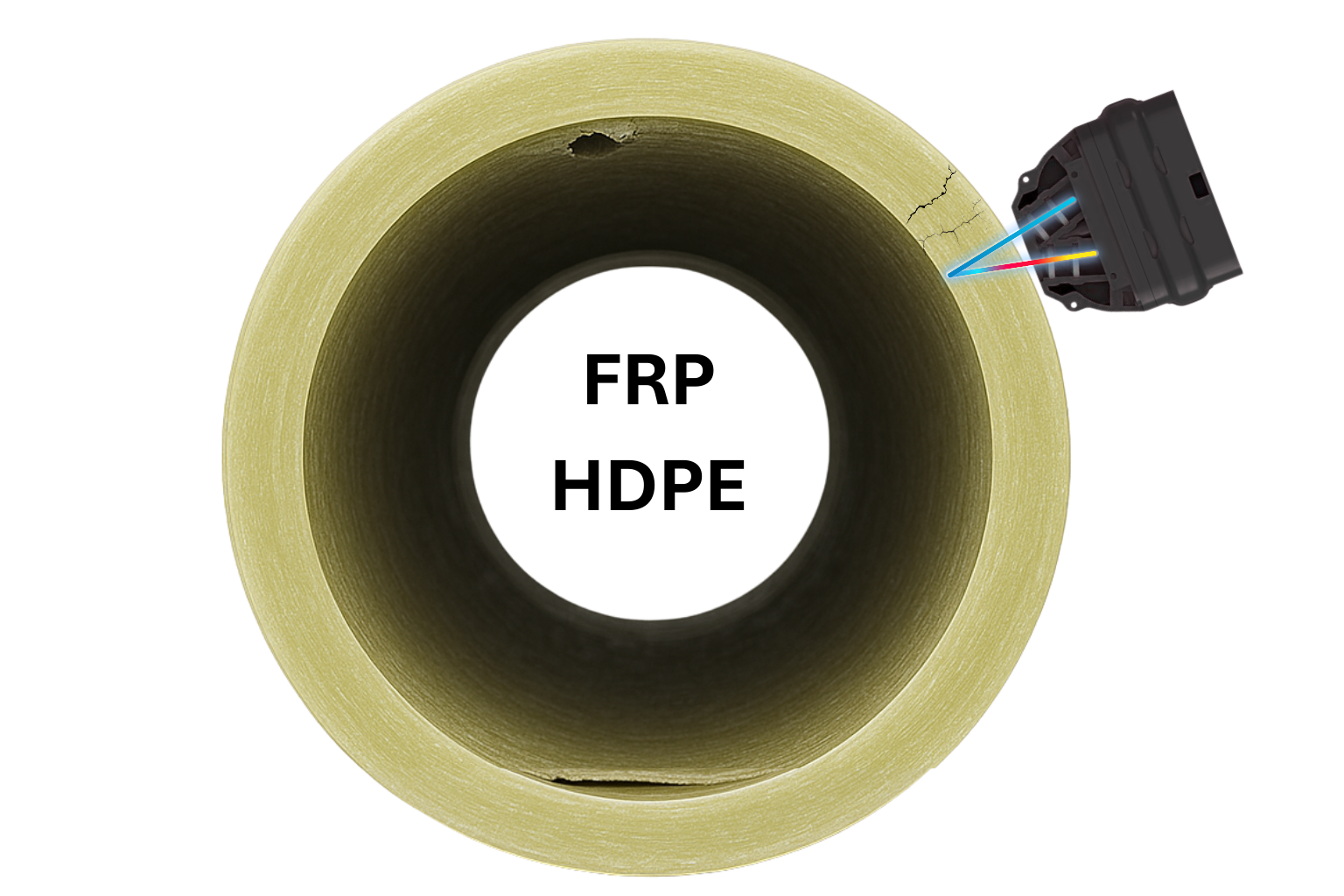

Defect-detection in FRP
TeraNIM™ – Aerospace is addressing the following inspections.

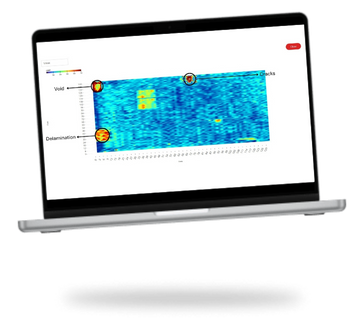

- Detect internal cracks, voids, and delamination in FRP
- Identify surface and subsurface defects with high precision
- FRP weld inspection
Integrated PC and software package for real-time measurement and data analysis
- Dielectric properties and material characteristics can be measured.

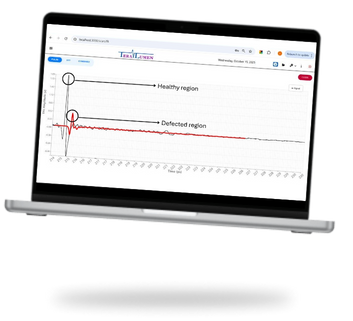

- Obtain both time domain and frequency domain signal.
- Both spectroscopy and imaging measurements.
- Automated motorized stages for imaging.
Multi-Layer Measurement
- All Dielectric materials can be measured
- Measure thickness of each layer individually
- Compact and mobile
Efficacious and Accurate
- Real Time Measurement
- Non-Contact Measurement
- Accuracy with 0.1μm
User-Friendly Integration
- Offline system
- In-line system
- Auto Data saving and report generation
Safety First
- Terahertz waves are harmless to humans
- No protection required
- No moving parts
Terahertz Specification
| Spectral Range | 0.5 – 3.5 THz |
|---|---|
|
Dynamic Range |
> 50 dB |
|
Average Power |
100μW |
|
Total Scan Range |
> 330ps |
|
Scan Speed |
> 5ps/s |
|
THZ Frequency Resolution |
< 1.2GHz |
|
Laser Outputs Ports |
1550 nm, FC/APC, PM fibre |
Imaging Specification
| Travel Range | 75 mm x 75 mm x 75 mm ( customizable ) |
|---|---|
|
Resolution X – Axis |
< 250 μm* ( Stage resolution < 10 μm ) |
|
Resolution Y – Axis |
< 250 μm* ( Stage resolution < 10 μm ) |
|
Resolution Z – Axis |
Stage resolution < 10 μm |
|
Speed |
10 mm/sec |
|
Sensor Integration |
Camera / Depth Sensor / Laser |
Note: Turnkey system is customizable based on application requirements.
