DISCOVER THE INVISIBLE.

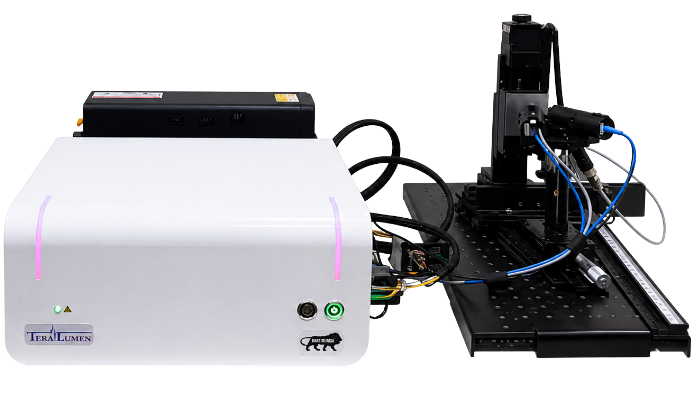

TeraXplor™ Terahertz
Spectroscopy System
A configurable THz-TDS platform for broadband spectroscopy, imaging and material characterization — designed for universities, research laboratories and advanced R&D teams.
What Can You Measure with TeraXplor?
Move from a terahertz waveform to material-level information using a configurable THz-TDS research platform.
Time Domain Spectroscopy
Acquire THz time-domain pulses and analyze the signal in ps and corresponding amplitude.
Fast Fourier Transform Analysis
Plot frequency domain Spectrum in THz bandwidth either in atmospheric condition or with nitrogen purging.
THz Imaging
Extend point spectroscopy into spatial mapping using optional motorized scanning configurations.
Refractive Index
Extract frequency-dependent refractive-index information from suitable dielectric materials.
Absorption Coefficient
Evaluate terahertz absorption behaviour and compare material response across frequency.
Layer Thickness
Investigate suitable dielectric layers and multilayer structures using time-of-flight information.
Why Researchers Choose TeraXplor
Broadband THz measurement, configurable geometry, imaging readiness and integrated software in one research platform.
Flexible Measurement Configurations
Configure TeraXplor for THz transmission, reflection and custom spectroscopy experiments.
Integrated THz Acquisition & Analysis
Acquire THz data, view time-domain pulses, FFT spectra and analyze material properties in Lumen Lite.
Integrated 8 MP Camera
Camera integration on the THz sensor supports practical alignment during research measurements.
High-Resolution Spectroscopy
Broadband 0.1 to >5 THz spectroscopy with <1.2 GHz frequency resolution for material research.
THz Imaging Ready
Add motorized scanning for repeatable spatial measurements and THz imaging workflows.
Modular Research Platform
Configure reflection probes, polarizers, purging, stages, lenses and custom accessories.

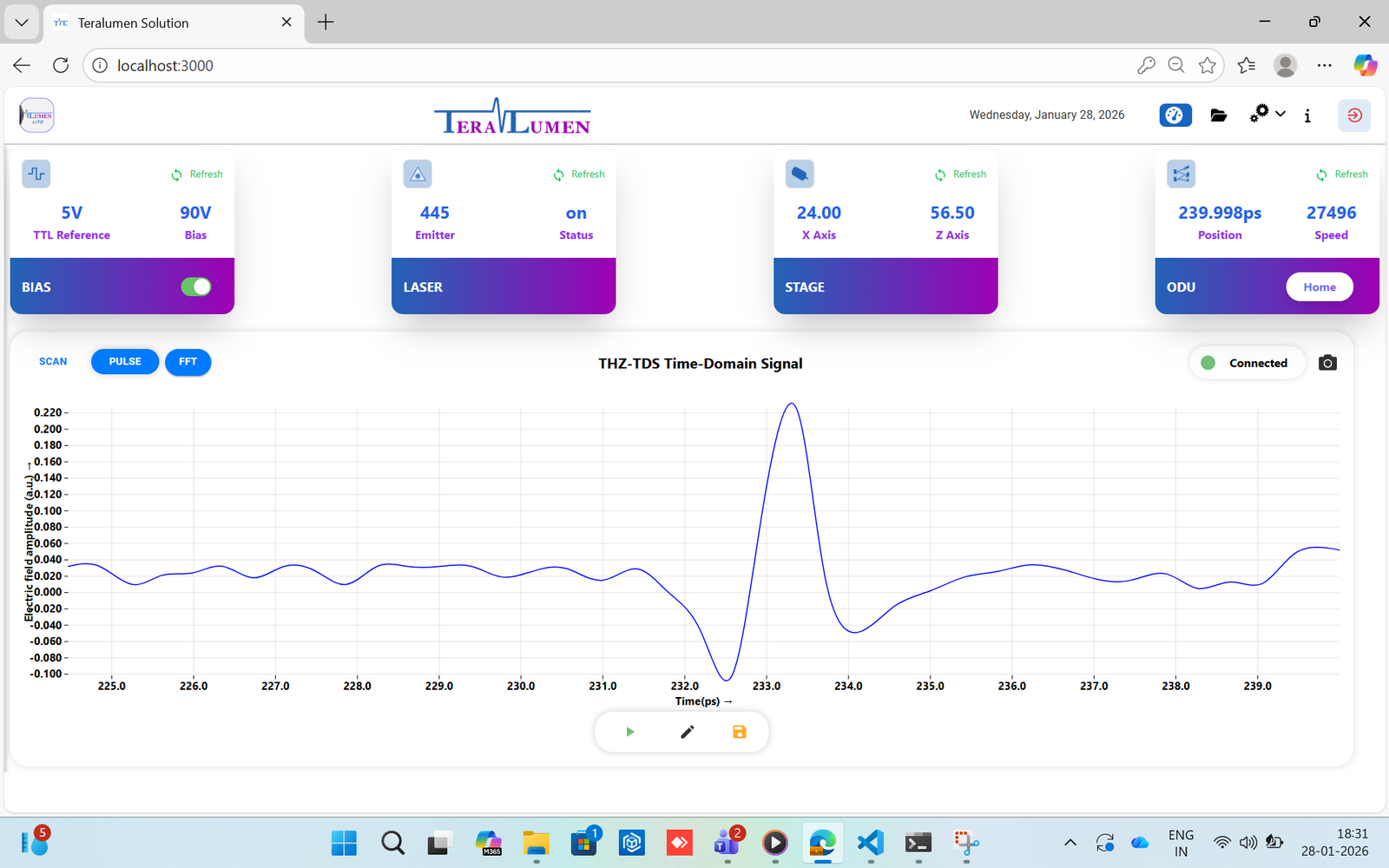

Integrated THz Measurement & Analysis Software
A unified workflow for system control, THz acquisition, visualization, file management and core material analysis.
One THz Platform. Multiple Research Configurations.
Select a measurement geometry that fits the sample and research objective, then expand the setup as the project evolves.

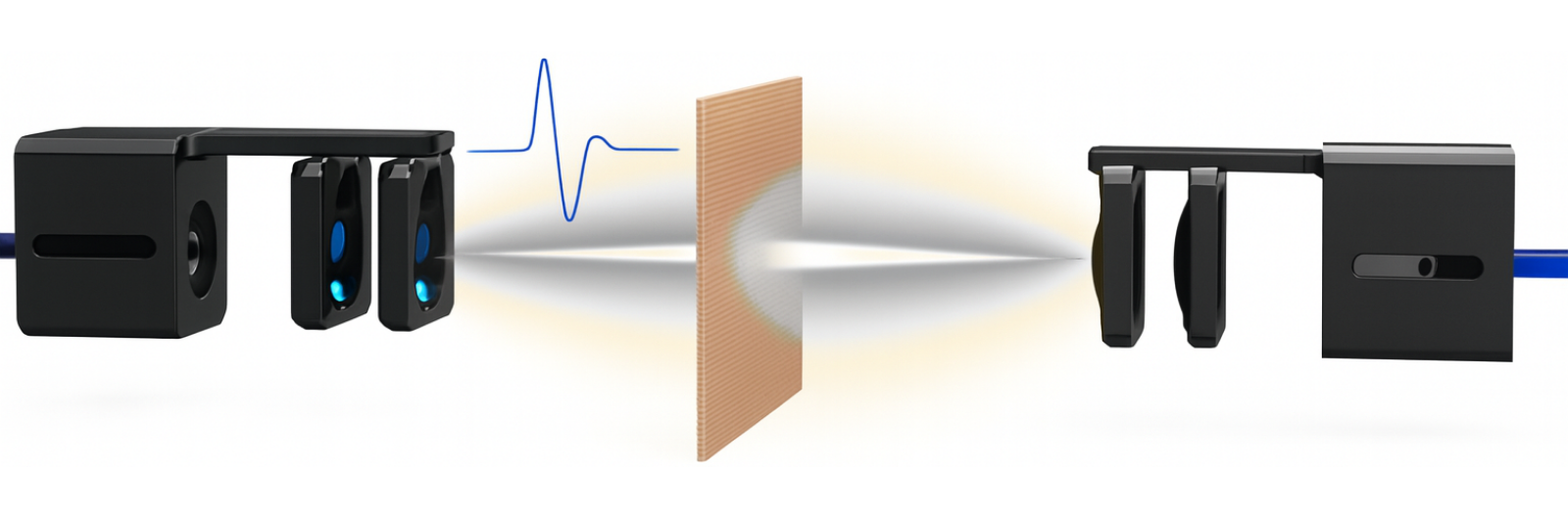

Transmission THz-TDS
The THz pulse passes through the sample and is detected on the opposite side — suitable for appropriate THz-transmitting or semi-transparent samples.

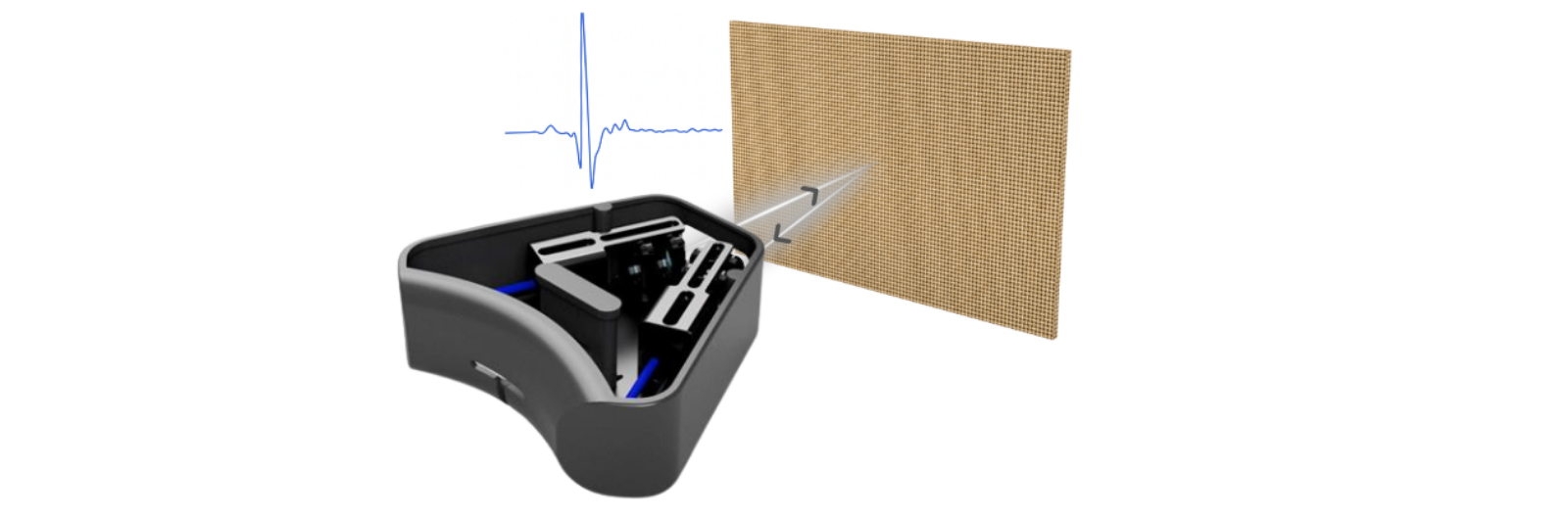

Reflection THz-TDS
Measure the reflected THz response from the same side of the sample when transmission geometry is impractical.
Motorized THz Imaging
Add motorized scanning to convert point measurements into repeatable spatial scans for material mapping and imaging studies.
Material Characterization
Study broadband THz response, amplitude and phase information, refractive index and absorption behaviour of suitable materials.
Discuss a material →Polymers & Dielectrics
Investigate dielectric properties and compare terahertz response across polymers and non-conductive research samples.
Discuss a sample →Pharmaceutical Research
Support research on tablets, crystalline and amorphous structures, chemical analysis and process analytical technology studies.
Discuss a pharma study →Coatings & Multilayers
Explore suitable dielectric layer thickness, interfaces and multilayer structures with non-contact terahertz measurements.
Discuss a coating →THz Imaging & NDT R&D
Combine spectroscopy with motorized scanning for spatial studies, quality research and non-destructive evaluation.
Discuss imaging →Liquids, Gases & Custom Studies
The brochure lists liquids and gases analysis and supports customizable measurement setups for application-specific research.
Discuss your experiment →TeXplor Technical specifications
| Laser Source | 1550 ± 10 nm femtosecond laser |
| Laser Repetition Rate | 100 MHz |
| THz Technology Type | Time Domain Signal |
| Spectral Range | 0.1 to > 5 THz |
| THz Emitter / Receiver | InGaAs photoconductive emitter and detector |
| Working Mode | Transmission and Reflection |
| Dynamic Range | 70 to 80 dB |
| Average Power | 100 µW |
| Standard Scan Range | 330 ps, 600 ps, 1000 ps, 2000 ps |
| THz Frequency Resolution | < 1.2 GHz |
| Compatible Software | Lumen Lite |
| Operating Voltage | 230 VAC, 10 A |
| Power Consumption | < 500 W |
| Ambient Atmosphere | < 25 °C, 80% RH |
| Operating Temperature | 18° – 40 °C |
| Controller (L×W×H) | 40 × 30 × 15 cm |
| Controller Weight | 18 Kg |
| THz Sensor Weight | < 500 Grams |
| Travel Range | 75 mm × 75 mm × 75 mm |
| Resolution X-Axis | < 250 µm* |
| Resolution Y-Axis | < 250 µm* |
| Axis Resolution Stage | < 10 µm |
| Load Capacity | < 3 kg |
| Actuator | Stepper motor |
*Turnkey system is customizable based on application requirements.
Expand TeraXplor Around the Experiment
THz accessories extend TeraXplor's capabilities for diverse sample geometries, imaging needs, and research workflows.
India's First Terahertz Company
We, the TeraLumeners stand at the forefront of innovation with Terahertz Technology. Harnessing the power of Terahertz waves, we address the potential challenges faced in Bio-Medical, Industrial, and Scientific domains. Our collective expertise is rooted in a rich 36-year legacy, driving progress and pioneering solutions that resonate at the speed of light along with younger generation.
Our TeraLumener’s leaders have patents for following:
1. TERAHERTZ IMAGING SYSTEM AND METHODS
2. DEVICE FOR DETECTION OF BREAST CANCER MARGIN
3. TERAHERTZ CONTACT-LESS TESTING SYSTEM AND PROBE DESIGN
Latest THz Publications
TeraNIM™ Terahertz NDT System for Non-Contact Material Inspection
Explore coatings, composites, polymers, battery materials and multilayer structures with a configurable terahertz time-domain inspection platform designed for applied research, application development and automation-ready NDT.
One THz Platform. Multiple Material-Inspection Problems.
TeraNIM helps universities, R&D laboratories and industrial teams move from a reflected THz waveform to layer, interface and spatial information without first building a complete terahertz instrument.
Multi-Layer Thickness
Resolve suitable dielectric interfaces and estimate individual layer thickness after coating- or material-specific calibration.
THz Imaging
Combine point measurements with motorized or automated scanning to generate repeatable A-scan, B-scan and C-scan datasets.
Subsurface Defects
Investigate voids, delamination, inclusions and internal interfaces in suitable low-loss polymers and composite structures.
Material Response
Study time-domain and frequency-domain response and evaluate material-specific behavior within the usable THz bandwidth.
Automation Research
Integrate the THz probe with scanners, encoders, cobots or robots for repeatable positioning and larger-area inspection workflows.
Research Data Workflow
Store measurement data and export results for reporting or further analysis in research tools such as Python and MATLAB.
Choose the TeraNIM Configuration Around Your Research Problem
Aerospace, automotive and Oil & Gas use the same terahertz measurement foundation, but differ in probe integration, material validation, automation and inspection workflow.
Terahertz NDT for Aerospace Materials
Applied research and inspection development for low-density coatings, composites, bonded interfaces and thermal-protection materials.
Explore Aerospace Research →
Automotive Coating & Battery Research
Non-contact multilayer paint measurement, process-development studies and THz research on EV electrode materials.
Explore Automotive Research →
Polymer & Composite Infrastructure
Develop inspection workflows for HDPE/MDPE joints, GFRP structures and polymer pipeline or coating systems.
Explore Oil & Gas Research →How Terahertz NDT Reveals Internal Interfaces
In reflection-mode THz-TDS, part of the broadband pulse is reflected whenever the signal encounters a suitable change in electromagnetic properties. The timing and amplitude of these reflections can be analyzed after application-specific calibration.
Show the THz Signal. Show the Engineering Result.
A research buyer should see more than a product photograph. Use real waveforms, interface echoes, maps and software outputs throughout the page to demonstrate how TeraNIM converts THz measurements into usable engineering data.
THz Research for EV Battery Electrode Characterization
Electrode calendering changes the physical structure of lithium-ion battery electrodes. TeraNIM can be used as a research platform to study THz response before and after process steps and investigate spatial variation in suitable electrode samples.
The public positioning should remain research-led until a specific electrode chemistry, thickness and measurement method are validated for quantitative production use.
Research workflow: compare material response across process conditions
From THz Signal to Engineering Insight
Integrated software supports measurement setup, acquisition, waveform visualization, analysis, imaging workflows and digital data handling.
Configure TeraNIM Around the Sample and Experiment
Start with point measurements for material feasibility, then expand the same application into repeatable scanning or automated inspection when the research program requires it.
Flexible point measurement and feasibility studies on accessible component surfaces.
Repeatable line or raster scanning for research imaging and spatial mapping.
Automation-ready probe integration for repeatable positioning and production-oriented development.
Application-specific geometry, fixtures, scan area and system integration for collaborative R&D.
TeraNIM Configuration Overview
TeraNIM is configured around the application. Variant-specific performance should be referenced from the current approved Aero, Auto or Oil & Gas datasheet.
| Technology | Terahertz Time-Domain System (THz-TDS) |
| THz Source Platform | 1550 nm femtosecond laser based |
| Primary Measurement Geometry | Reflection / single-sided inspection |
| Probe Integration | Handheld, scanner mountable, robot / cobot integration options |
| Measurement Outputs | THz waveform, calibrated thickness / multilayer results, imaging where configured |
| Software | Lumen GO |
| Data Workflow | Digital storage, CSV / Excel / image / report export depending on configuration |
| System Configuration | Application-specific and customizable |
| Spectral Range | 0.1–4 THz |
| Dynamic Range | >60 dB |
| Thickness Range | 20 µm to 40 mm in polymer, reference RI = 1.5 |
| Scan Range | Up to 1200 ps |
| Fast Scan Window | 100 ps |
| Fast Scan Speed | 14 Hz in standard configuration |
| Focused Spot | 2 mm |
| Typical Measurement Time | 5–10 seconds per point, application dependent |
| Imaging | Defect C-scan, 2-axis C-scan planning, data stitching / merge |
| Compatible Substrates | Suitable metallic, plastic and composite painted components |
| Measurement Result | Individual validated coating layers and total thickness |
| Minimum Layer Thickness | Approximately 20 µm, application dependent |
| Measurement Spot | Approximately 2 mm |
| Typical Measurement Time | Approximately 5–10 seconds per point |
| Working Distance | Application / probe configuration dependent |
| Automation | Robot / cobot and production-development integration |
| Calibration | Coating-specific calibration and validation required |
| Spectral Range | 0.1–3.5 THz |
| Dynamic Range | >50 dB |
| Representative Materials | FRP, GFRP, HDPE, MDPE and suitable polymers |
| Thickness Penetration | 25 mm at reference RI = 1.8 |
| THz Beam Diameter | 2–8 mm, configuration dependent |
| Delay Line | 330 ps / 660 ps options |
| Measurement Modes | Single point or imaging with scanner |
| Probe | Handheld, camera-assisted positioning |
*Specifications are configuration- and application-dependent and may change. Use the latest approved product datasheet before publishing contractual performance values.
Solve the Application — Without First Building the THz Instrument
TeraNIM enables research groups to focus on material science, NDT algorithms, imaging, automation and application validation while using a configurable terahertz measurement platform as the experimental foundation.
Go Deeper Than a Product Brochure
Build scientific confidence with application notes, measurements, publications and downloadable variant specifications directly from the product page.
Aerospace THz NDT
Composite inspection, thermal-protection coatings, low-density materials, rubber and related aerospace studies.
Automotive & EV
Paint multilayer measurement, automated process research and emerging THz battery material studies.
White Papers & Publications
Connect TeraNIM product claims to supporting THz literature, company papers and technical resources.
Before You Send a Sample
What materials can TeraNIM inspect?
TeraNIM is primarily applied to suitable dielectric and low-loss materials such as polymers, coatings, FRP/GFRP structures and other application-specific non-metallic systems. Feasibility depends on absorption, thickness, interfaces, geometry and the required inspection output.
Can TeraNIM measure individual layers in a multilayer coating?
Potentially yes when distinct interface reflections can be resolved with sufficient THz contrast and signal-to-noise ratio. The coating stack should be calibrated and validated using representative reference samples.
Is THz NDT suitable for CFRP and other composites?
THz reflection methods can be useful for suitable coatings, interfaces and low-density structures associated with composite components. CFRP architecture, fibre orientation, conductivity and the exact inspection target can influence feasibility.
Can TeraNIM be used for university research?
Yes. The system can support applied research in material inspection, layer analysis, THz imaging, NDT algorithms, automation and application development without requiring the research group to build the complete THz instrument from components.
Can TeraNIM integrate with a scanner, robot or cobot?
Yes, supported configurations can integrate the THz probe with motorized scanners, robots or cobots for repeatable positioning, spatial mapping and automation-oriented development.
How do I know whether my sample is measurable with THz?
The recommended first step is a sample-feasibility study. TeraLumen can evaluate the material, layer stack, geometry, thickness range and required output before proposing a measurement configuration.
Have a material, coating or defect problem for THz?
Send the material details, approximate thickness, inspection objective and sample geometry. Start with feasibility before deciding the final TeraNIM configuration.
